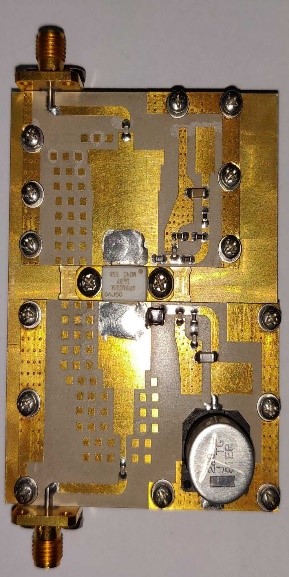

| Parameter | Value |
|---|---|
| Frequency | 2.7 - 2.9 GHz |
| Output Power | 427 W |
| Linear Gain | 21.2 dB |
| Typical PAE | 75.1% |
| Opeating Voltage | 50 V |
| CW and Pulse | capable |

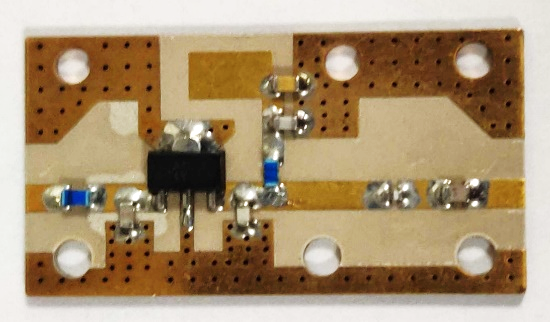

| Parameter | Units | Typ. |
|---|---|---|
| Frequency | GHz | 1-4 |
| Gain | dB | 15 |
| Noise Figure | dB | 3 |
| Input Return Loss | dB | 15 |
| Output Return Loss | dB | 17 |
| Output P1dB | dBm | 28.5 |
| Output IP3 | dBm | 42 |
| Quiescent Current | mA | 220 |
| Current (PIN = 0 dBm) | mA | 225 |
| Supply Voltage | V | 5 |

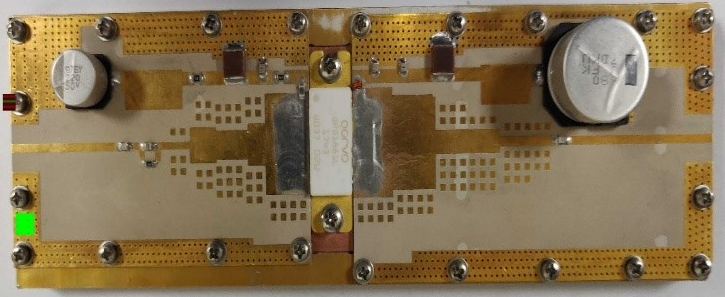

| Specification | Details |
|---|---|
| Frequency | DC to 3.7 GHz |
| Output Power (P3dB) | 70 W |
| Linear Gain | 20 dB |
| Typical PAE3dB | 74% |
| Operating Voltage | 50 V |
| Package | Low thermal resistance |
| Capability | CW and Pulse capable |

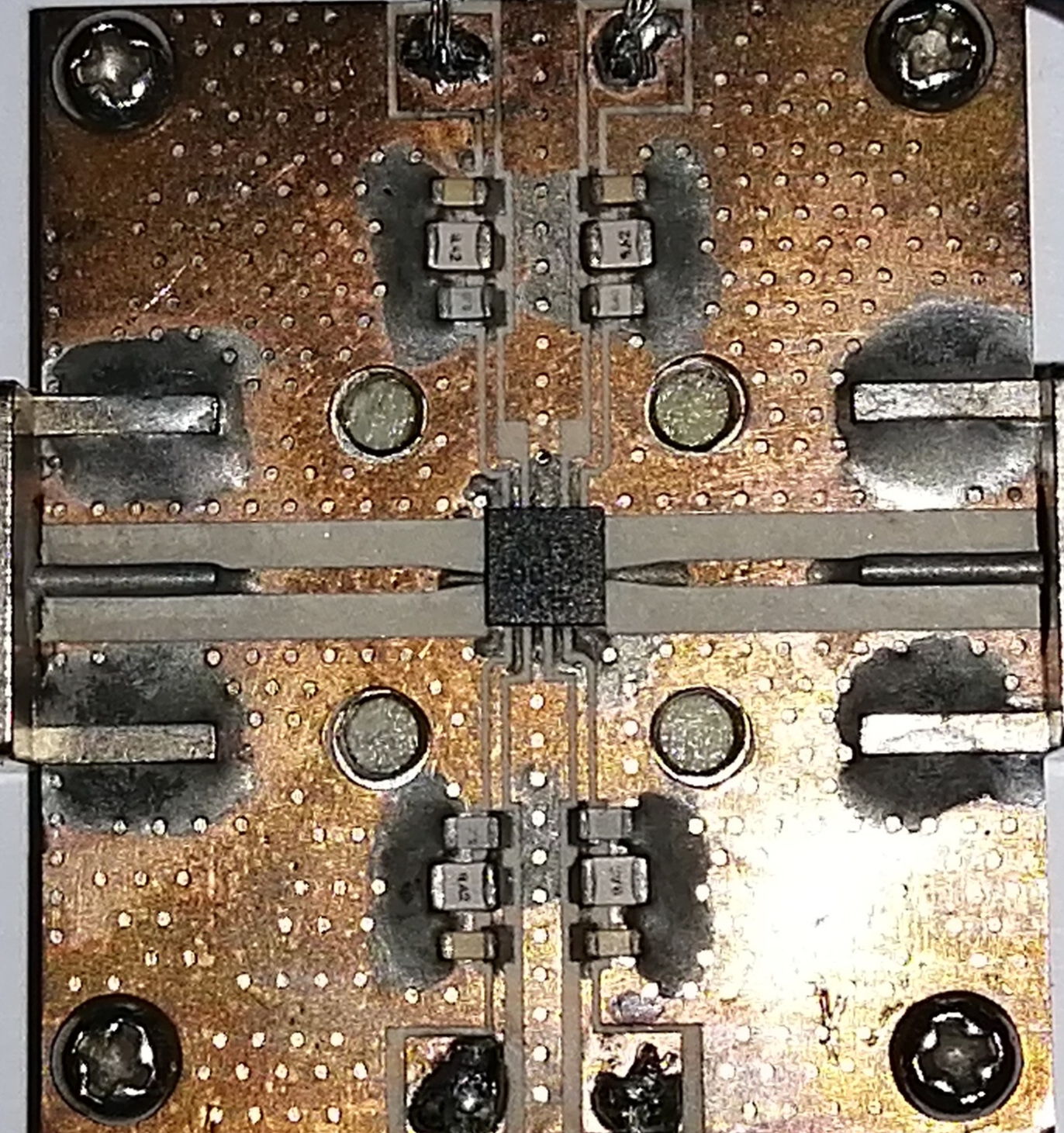

| Parameter | Specification |
|---|---|
| Frequency | 6 GHz to 16 GHz |
| Low Noise Figure | 1.7 dB typical at 6 GHz to 16 GHz |
| High Gain | 18.5 dB typical at 6 GHz to 16 GHz |
| Output Power for 1 dB Compression (P1dB) | 14.5 dBm typical at 6 GHz to 16 GHz |
| Single-supply Voltage | 3.5 V at 80 mA typical |
| Output Third-order Intercept (IP3) | 25 dBm typical |
| Capabilitiy | Self-biased with optional bias control for IDQ reduction |
